Workaround for Pluggable Time Source support for RHEL 5.x 64-bit Hyper-V guests
October 29, 2010
Leave a comment
When installed in a supported Linux virtual machine running on Hyper-V, the Linux Integration Components provide:
• Driver support for synthetic devices: The Linux integration components include support for both the synthetic network controller and synthetic storage controller that have been developed specifically for Hyper-V. These components take advantage of the new high-speed bus, VMBus, which was developed for Hyper-V.
• Fastpath Boot Support: Boot devices now take advantage of the storage VSC to provide enhanced performance.
• Timesync: The clock inside the virtual machine will remain synchronized with the clock on the host.
• Integrated Shutdown: Virtual machines running Linux can be shut down from either Hyper-V Manager or System Center Virtual Machine Manager, using the “Shut Down” command.
• Symmetric Multi-Processing (SMP) Support: Supported Linux distributions can use up to 4 virtual processors (VP) per virtual machine.
• Heartbeat: Allows the host to detect whether the guest is running and responsive.
• Pluggable Time Source: A pluggable clock source module is included to provide a more accurate time source to the guest.
Although this version of the integration services for Hyper-V supports Novell SUSE Linux Enterprise Server 10 SP3, SUSE Linux Enterprise Server 11, and Red Hat Enterprise Linux 5.2 / 5.3 / 5.4 / 5.5, Red Hat Enterprise Linux 5 x64 editions do not support using the Pluggable Time Source component.
However, you can use the existing timesync component with the adjtimex RPM package, to compensate for time drift:
If using the x64 version of Red Hat Enterprise Linux, follow these additional instructions:
1. Attach the Red Hat Enterprise Linux ISO that was used for installation in the virtual machine, and mount it using the following commands at a shell prompt:
# mkdir /mnt/cdrom
# mount /dev/cdrom /mnt/cdrom
2. Install the adjtimex RPM for more accurate time keeping in the virtual machine:
# rpm –ivh /mnt/cdrom/Server/adjtimex-1.20-2.1.x86_64.rpm
To install the Linux IC.
After the ISO is “available”.
Firstly, install the Required Components via Command Line
Red Hat updates
# yum install kernel-devel
# yum groupinstall “development tools”
# yum update
Restart the VM and then, insert the LinuxIC iso into the DVD drive and copy the contents to /opt/linuxic directory.
Run the commands below, to install the IC:
# mount /dev/cdrom /mnt
# mkdir /opt/linux_is
# cp –r /mnt/* /opt/linux_is
# cd /opt/linux_is
# make
# make install
To verify that the Linux ICs are working.
# /sbin/lsmod | grep vsc
# modinfo vmbus
To verify the Synthetic Ethernet adapter is working
# ifconfig seth0 Note: Article also published by myself at http://social.technet.microsoft.com/wiki/contents/articles/workaround-for-pluggable-time-source-support-for-rhel-5-x-64-bit-hyper-v-guests.aspx My thanks to Sumesh P - MSFT, who helped with the tip.
Windows 7 SP1: RemoteFX. Steps to provide the same user experience as though they were running on a physical computer
October 28, 2010
Leave a comment
The RemoteFX feature allows Windows 7 SP1 and applications running in virtual machines to provide the same user experience as though they were running on a physical computer.
The RemoteFX feature also allows remote users to redirect local USB devices to their Remote Desktop sessions.( I will talk about this in my next article )
The following steps will help you understand how RemoteFX improves the user experience when running Windows 7 and applications in a virtualized environment :
1. Install Windows Server 2008 R2 SP1
- Verify that the appropriate device drivers have been installed for the 3D accelerated video display adapter.Unless the appropriate device drivers are installed for the 3D accelerated video display adapter, you cannot start the Windows 7 virtual machine with the RemoteFX 3D Video Adapter Support enabled
- Install the Hyper-V server role.
- Install the Remote Desktop Services server role with the following role services:
Remote Desktop Virtualization Host
Core Services
RemoteFX
2.Install Windows 7 SP1.
- Enable Remote Desktop connections
- Shutdown the Windows 7 virtual machine.
3. Enable RemoteFX 3D Video Adapter Support on Windows 7 Virtual Machine.
The RemoteFX 3D Video Adapter Support must be added to the Windows 7 virtual machine by performing the following steps on the computer running Windows Server 2008 R2 SP1:
- Start Hyper-V Manager.
- In Hyper-V Manager, select the Windows 7 virtual machine and in the Actions pane click Settings.
- In the navigation pane, under the Hardware section, click Add Hardware.
- Add the adapter; start the virtual machine; verify that the adapter is installed and then restart the machine.
- In the properties pane, click RemoteFX 3D Video Adapter, and then click Add.
- The RemoteFX 3D Video Adapter appears in the list of hardware in the Hardware section as show in the following figure.
- Start the virtual machine; verify that you can login and that you have loaded the driver. The VM will ask to be restarted at this point, perform the restart.
4. To checkout that RemoteFX is properly installed and configured :
-
Start the virtual machine running Windows 7 SP1.
-
Establish a Remote Desktop session with Windows 7 SP1 by using the Remote Desktop Connection client in Windows Server 2008 R2 SP1
- On the Local Resources tab(Remote Desktop Connection client), in Apply Windows key combinations, select one of the following:
- Only when using full screen. Select this option if you are going to run the Remote Desktop session in full screen.
- On the remote computer. Select this option if you are going to run the Remote Desktop session in a window.
- On the Experience tab, in Performance section, select LAN (10Mbps or higher) and verify that all the check boxes are selected.
- Log on Windows 7 SP1.
- Change the theme for the Windows 7 to use an Aero theme. The desktop theme should appear with all the Aero features, such as transparency.
As you can see the RemoteFX feature allows Windows 7 SP1 and applications running in virtual machines to provide the same user experience as though they were running on a physical computer.
Other improvements in Windows 7 SP1 :
· Additional support for communication with third-party federation services – Additional support has been added to allow Windows 7 clients to effectively communicate with third-party identity federation services (those supporting the WS-Federation passive profile protocol).
· Improved HDMI audio device performance – Updates have been incorporated into SP1 to ensure that connections between Windows 7 computers and HDMI audio devices are consistently maintained.
· Corrected behavior when printing mixed-orientation XPS documents – Prior to the release of SP1, some customers have reported difficulty when printing mixed-orientation XPS documents (documents containing pages in both portrait and landscape orientation) using the XPS Viewer, resulting in all pages being printed entirely in either portrait or landscape mode. This issue has been addressed in SP1, allowing users to correctly print mixed-orientation documents using the XPS Viewer.
Windows Server 2008 R2 SP1 RC available for download
October 28, 2010
Leave a comment
You can download Windows Server 2008 R2 SP1 Release Candidate now which includes the usual bug fixes, etc… there are some specific changes for dynamic memory in there:
Download from here: http://www.microsoft.com/windowsserver2008/en/us/sp1.aspx
Some of the improvements for Windows Server 2008 R2 SP1 include:
• Dynamic Memory – Dynamic Memory allows for memory on a host machine to be pooled and dynamically distributed to virtual machines as necessary. Memory is dynamically added or removed based on current workloads, and is done so without service interruption.
• Microsoft RemoteFX – a new set of remote user experience capabilities that enable a media-rich user environment for virtual desktops, session-based desktops and remote applications
• Enhancements to scalability and high availability when using DirectAccess – improvements have been made to enhance scalability and high availability when using DirectAccess, through the addition of support for 6to4 and ISATAP addresses when using DirectAccess in conjunction with Network Load Balancing (NLB).
• Support for Managed Service Accounts (MSAs) in secure branch office scenarios – enhanced support for managed service accounts (MSAs) to be used on domain-member services located in perimeter networks (also known as DMZs or extranets).
• Support for increased volume of authentication traffic on domain controllers connected to high-latency networks – more granular control of the maximum number of possible concurrent connections to a domain controller, enabling a greater degree of performance tuning for service providers.
• Enhancements to Failover Clustering with Storage – SP1 enables enhanced support for how Failover Clustering works with storage that is not visible for all cluster nodes. In SP1, improvements have been made to the Cluster Validation and multiple Failover Cluster Manager wizards to allow workloads to use disks that are shared between a subset of cluster nodes.
Note : once the final build of SP1 ships, you’ll need to uninstall the RC version in order to upgrade.
Windows Server 2008 R2 Security Baseline : Solution Accelerators
October 28, 2010
Leave a comment
| Elevate the security of Windows Server 2008 R2.
The Windows Server 2008 R2 Security Baseline, in combination with the Security Compliance Manager tool, is designed to help your organization plan, deploy, and monitor the security of Windows Server 2008 R2. This release also includes a Windows Server 2008 R2 settings pack, enabling you to define baselines that include settings outside the scope of the security baselines from Microsoft. To get the public release of this security baseline, download the Security Compliance Manager. |
Categories: Microsoft
Security, Solution Accelerator, Windows Server® 2008 R2
New security baselines for SQL Server
October 28, 2010
Leave a comment
New security baselines for SQL Server 2008 and SQL Server 2008 R2 now available for beta download.
The latest security baselines in this beta review program are designed to help you plan, deploy, and monitor the security of Microsoft SQL Server 2008 and SQL Server 2008 R2.
The baselines are formatted for import using the Security Compliance Manager, which provides guidance and tools to help you balance your organization’s needs for security and functionality.
Categories: Microsoft
Security, Solution Accelerator, SQL Server
Hyper-V 2008R2 SP1: Guest Requirements for Dynamic Memory
October 22, 2010
Leave a comment
The following Windows server operating systems support Dynamic Memory when installed as the guest operating system on a virtual machine:
- Windows Server 2008 R2 Standard Edition SP1*
- Windows Server 2008 R2 Enterprise Edition SP1
- Windows Server 2008 R2 Datacenter Edition SP1
- Windows Server 2008 R2 Web Edition SP1*
- Windows Server 2008 Standard Edition SP2*
- Windows Server 2008 Enterprise Edition SP2
- Windows Server 2008 Datacenter Edition SP2
- Windows Server 2008 Web Edition SP2*
- Windows Server 2003 R2 Standard Edition SP2 or higher*
- Windows Server 2003 R2 Enterprise Edition SP2 or higher
- Windows Server 2003 R2 Datacenter Edition SP2 or higher
- Windows Server 2003 R2 Web Edition SP2 or higher*
- Windows Server 2003 Standard Edition SP2 or higher*
- Windows Server 2003 Enterprise Edition SP2 or higher
- Windows Server 2003 Datacenter Edition SP2 or higher
- Windows Server 2003 Web Edition SP2 or higher*
Note: The Beta release of Service Pack 1 does not support Dynamic Memory for the operating systems marked with an asterisk (*) above. However, support for Dynamic Memory for these operating systems will be added in a future release of SP1.
Note: Dynamic Memory is supported for both the x86 and x64 architectures of Windows Server 2003, Windows Server 2003 R2 and Windows Server 2008.
The following Windows client operating systems for both x86 and x64 architecture also support Dynamic Memory when installed as the guest operating system on a virtual machine:
- Windows® 7 Enterprise Edition
- Windows 7 Ultimate Edition
- Windows Vista® Enterprise Edition SP2
- Windows Vista Ultimate Edition SP2
How Hyper-V responds to disk failure
October 21, 2010
Leave a comment
Ben Armstrong ( Virtual PC Guy ), Virtualization Program Manager at Microsoft, wrote a good article about this.
Take a look here : http://blogs.msdn.com/b/virtual_pc_guy/archive/2010/10/07/how-hyper-v-responds-to-disk-failure.aspx
Categories: Microsoft, Virtualization
Hyper-V, Microsoft, Virtualisation, Virtualization, Windows Server® 2008 R2
Virtualisation planning process : memory configuration maximums.
October 21, 2010
Leave a comment
Today’s challenge for a virtualization admins it’s to provision memory requirements within the guest for unique workloads, paying attention to the host environment.
Although today, memory is relatively cheap, it may not be the case in the future and we also need to take in consideration the host maximums, as this will impact what OS would be available for a guest virtual machine as well as the aggregated impact on the host. It is notorios that system/applications that are replacing older servers running W2K/W2K3 to now require more resources(RAM, CPU, Disk, Network ) than the previous systems/apps.
It is important to pay special attention to the memory limits, requirements and aggregate memory capacity with insight to future needs.
Limits on memory and address space vary by platform, operating system, and by whether the IMAGE_FILE_LARGE_ADDRESS_AWARE value of the LOADED_IMAGE structure and 4-gigabyte tuning (4GT) are in use. IMAGE_FILE_LARGE_ADDRESS_AWARE is set or cleared by using the /LARGEADDRESSAWARE linker option.
Limits on physical memory for 32-bit platforms also depend on the Physical Address Extension (PAE), which allows 32-bit Windows systems to use more than 4 GB of physical memory.
Memory and Address Space Limits
The following table specifies the limits on memory and address space for supported releases of Windows. Unless otherwise noted, the limits in this table apply to all supported releases.
| Memory type | Limit in 32-bit Windows | Limit in 64-bit Windows |
| User-mode virtual address space for each 32-bit process | 2 GBUp to 3 GB with IMAGE_FILE_LARGE_ADDRESS_AWARE and 4GT | 2 GB with IMAGE_FILE_LARGE_ADDRESS_AWARE cleared (default)4 GB with IMAGE_FILE_LARGE_ADDRESS_AWARE set |
| User-mode virtual address space for each 64-bit process | Not applicable | With IMAGE_FILE_LARGE_ADDRESS_AWARE set (default):x64: 8 TBIntel IPF: 7 TB2 GB with IMAGE_FILE_LARGE_ADDRESS_AWARE cleared |
| Kernel-mode virtual address space | 2 GBFrom 1 GB to a maximum of 2 GB with 4GT | 8 TB |
| Paged pool | Limited by available kernel-mode virtual address space or the PagedPoolLimit registry key value.Windows Vista: Limited only by kernel mode virtual address space. Starting with Windows Vista with Service Pack 1 (SP1), the paged pool can also be limited by the PagedPoolLimit registry key value.Windows Home Server and Windows Server 2003: 530 MBWindows XP: 490 MBWindows 2000: 350 MB | 128 GBWindows Server 2003 and Windows XP: Up to 128 GB depending on configuration and RAM.Windows 2000: Not applicable |
| Nonpaged pool | Limited by available kernel-mode virtual address space, the NonPagedPoolLimit registry key value, or physical memory.Windows Vista: Limited only by kernel mode virtual address space and physical memory. Starting with Windows Vista with SP1, the nonpaged pool can also be limited by the NonPagedPoolLimit registry key value.Windows Home Server, Windows Server 2003, and Windows XP/2000: 256 MB, or 128 MB with 4GT. | 75% of RAM up to a maximum of 128 GBWindows Vista: 40% of RAM up to a maximum of 128 GB.Windows Server 2003 and Windows XP: Up to 128 GB depending on configuration and RAM.Windows 2000: Not applicable |
| System cache virtual address space (physical size limited only by physical memory) | Limited by available kernel-mode virtual address space or the SystemCacheLimit registry key value.Windows Vista: Limited only by kernel mode virtual address space. Starting with Windows Vista with SP1, system cache virtual address space can also be limited by the SystemCacheLimit registry key value.Windows Home Server, Windows Server 2003, and Windows XP/2000: 860 MB with LargeSystemCache registry key set and without 4GT; up to 448 MB with 4GT. | Always 1 TB regardless of physical RAMWindows Server 2003 and Windows XP: Up to 1 TB depending on configuration and RAM.Windows 2000: Not applicable |
—
Physical Memory Limits: Windows Server 2008 R2
The following table specifies the limits on physical memory for Windows Server 2008 R2. Windows Server 2008 R2 is available only in 64-bit editions.
| Version | Limit in 64-bit Windows |
|---|---|
| Windows Server 2008 R2 Datacenter | 2 TB |
| Windows Server 2008 R2 Enterprise | 2 TB |
| Windows Server 2008 R2 for Itanium-Based Systems | 2 TB |
| Windows Server 2008 R2 Foundation | 8 GB |
| Windows Server 2008 R2 Standard | 32 GB |
| Windows HPC Server 2008 R2 | 128 GB |
| Windows Web Server 2008 R2 | 32 GB |
—-
Physical Memory Limits: Windows Server 2008
The following table specifies the limits on physical memory for Windows Server 2008. Limits greater than 4 GB for 32-bit Windows assume that PAE is enabled.
| Version | Limit in 32-bit Windows | Limit in 64-bit Windows |
|---|---|---|
| Windows Server 2008 Datacenter | 64 GB | 1 TB |
| Windows Server 2008 Enterprise | 64 GB | 1 TB |
| Windows Server 2008 HPC Edition | Not applicable | 128 GB |
| Windows Server 2008 Standard | 4 GB | 32 GB |
| Windows Server 2008 for Itanium-Based Systems | Not applicable | 2 TB |
| Windows Small Business Server 2008 | 4 GB | 32 GB |
| Windows Web Server 2008 | 4 GB | 32 GB |
—–
Physical Memory Limits: Windows Server 2003
The following table specifies the limits on physical memory for Windows Server 2003. Limits over 4 GB for 32-bit Windows assume that PAE is enabled.
| Version | Limit in 32-bit Windows | Limit in 64-bit Windows |
|---|---|---|
| Windows Server 2003 with Service Pack 2 (SP2), Datacenter Edition | 128 GB64 GB with 4GT | IA64 2 TBX64 1 TB |
| Windows Server 2003 with Service Pack 2 (SP2), Enterprise Edition | 64 GB | IA64 2 TBX64 1 TB |
| Windows Storage Server 2003, Enterprise Edition | 8 GB | Not applicable |
| Windows Storage Server 2003 | 4 GB | Not applicable |
| Windows Server 2003 R2 Datacenter EditionWindows Server 2003 with Service Pack 1 (SP1), Datacenter Edition | 128 GB16 GB with 4GT | 1 TB |
| Windows Server 2003 R2 Enterprise EditionWindows Server 2003 with Service Pack 1 (SP1), Enterprise Edition | 64 GB16 GB with 4GT | 1 TB |
| Windows Server 2003 R2 Standard EditionWindows Server 2003, Standard Edition SP1Windows Server 2003, Standard Edition SP2 | 4 GB | 32 GB |
| Windows Server 2003, Datacenter Edition | 128 GB16 GB with 4GT | 512 GB |
| Windows Server 2003, Enterprise Edition | 32 GB16 GB with 4GT | 64 GB |
| Windows Server 2003, Standard Edition | 4 GB | 16 GB |
| Windows Server 2003, Web Edition | 2 GB | Not applicable |
| Windows Small Business Server 2003 | 4 GB | Not applicable |
| Windows Compute Cluster Server 2003 | Not applicable | 32 GB |

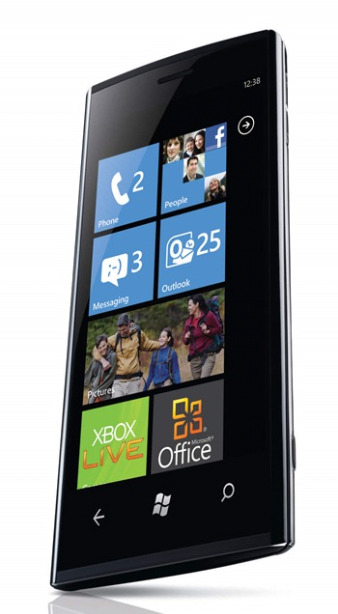

New Dell’s smartphone Venue Pro running Microsoft’s Windows Phone 7
October 19, 2010
Leave a comment
Hera are some of its key features of the new Dell’s smartphone, running Windows Phone 7 :
- Stunning 4.1” WVGA AMOLED capacitive, multi-touch display

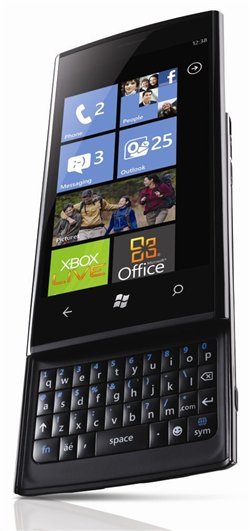

- A full portrait QWERTY keyboard to provide a better viewing & messaging experience
- Supported with T-Mobile service
- Elliptical, slender form provides elegance in a pocket-friendly size
- Gorilla Glass for unprecedented durability and scratch resistance
Some of the highlights and use cases for the new Windows Phone 7 :
- People hub: Enter social central to scan Windows Live and Facebook feeds and photos, in addition to dialing or texting friends in the address book.
- Pictures hub: Share photos easily from pictures saved to the phone, Facebook and Windows Live. Go from pocket to picture in seconds with a press of the camera button, and send photos from the hub to friends or post to Windows Live or Facebook.
- Games hub: Play games with friends, track scores and wins in the gamer profile. With more than 50 popular game titles available at launch, try-before-you-buy demos, Xbox LIVE leader boards, turn-based multiplayer, achievements and more, Windows Phone 7 brings the quality, consistency and community of the Xbox experience to gamers on the go.
- Music + Video: Play movies, TV shows and music quickly. Enjoy custom playlists, listen to podcasts and recommend favorite songs to friends.
- Office hub: View, edit, share and sync Microsoft Office documents. Collaborate with co-workers through SharePoint Workspace Mobile.
- Marketplace hub: Get quality applications like games, music, entertainment, news, sports, social networking, productivity, travel and many more. Apps are tested and certified to deliver a consistently great experience. Marketplace is also accessible through a PC client that is integrated into Microsoft’s popular Zune software.
The question is when the Venue Pro is comming to Australia?
Want to hear what people are saying about the all-new Dell Venue Pro? Follow the conversation on Twitter using the #DellVenuePro and #windowsphone hashtags.
Categories: Computers and Internet, Dell, Microsoft, Windows 7
Dell, Microsoft, Windows Phone 7
How to get a comprehensive view of the software installed on client computers including App-V apps
October 13, 2010
Leave a comment
Asset Inventory Service (AIS) provides a comprehensive view of the software installed on client computers in your enterprise. It helps reduce the total cost of managing software by providing a categorized software inventory and by translating the inventory data into useful, actionable information.
AIS is a core component of the Microsoft Desktop Optimization Pack for Software Assurance, a suite of advanced technologies to improve desktop manageability and security, and decrease total cost of ownership (TCO).
You can now get detailed hardware information on the computers in your inventory. AIS 2.0 will show you the amount of physical memory, processor speed, logical disk size and free space, network adapter information, and more.
Support for tracking of Microsoft Application Virtualization (App-V) applications. If you use App-V on your computers, AIS 2.0 can read into the application virtualization cache and add this software to your inventory
Software reports now aggregate the products by major and minor versions in order to make reports easier to read and still giving you the accuracy you need.
Links to AIS information:
Categories: Microsoft, Virtualization
AIS, MDOP, Microsoft, System Center Online, Windows Intune
Recommended Books
System Center 2012 R2 Virtual Machine
System Center Virtual Machine Manager 2012 Cookbook
Cloudtidings.com
